Section A: Flexitrol Spa Control - Installs inside spa cabinet

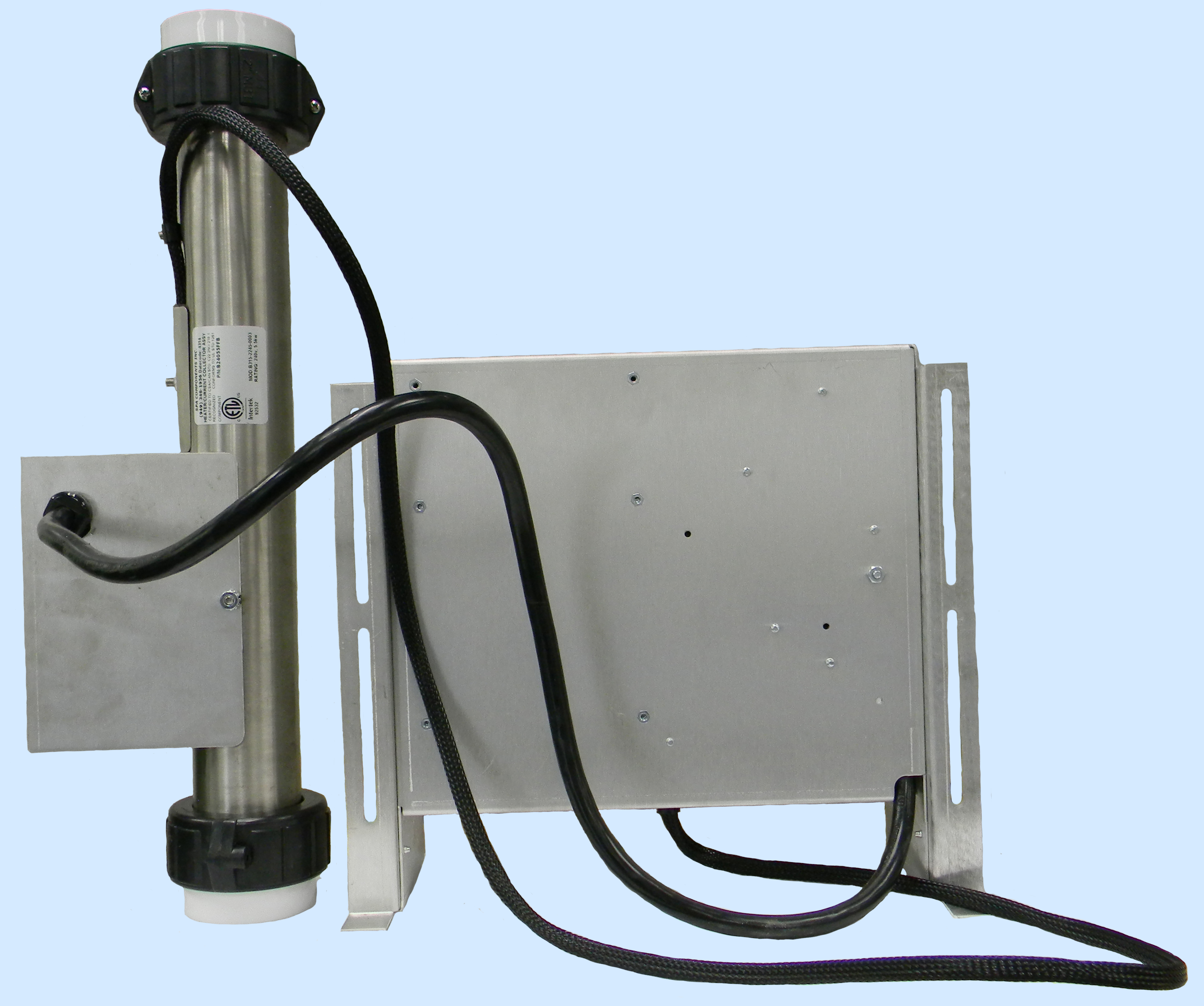

Heater separate on left side...
[Fig. ]
FlexiTrol Digital Spa Controller
Dimensions: L=13" x H=11½" (max 14½") x D=6½"
[Fig. ]

Heater separate on right side...
[Fig. ]

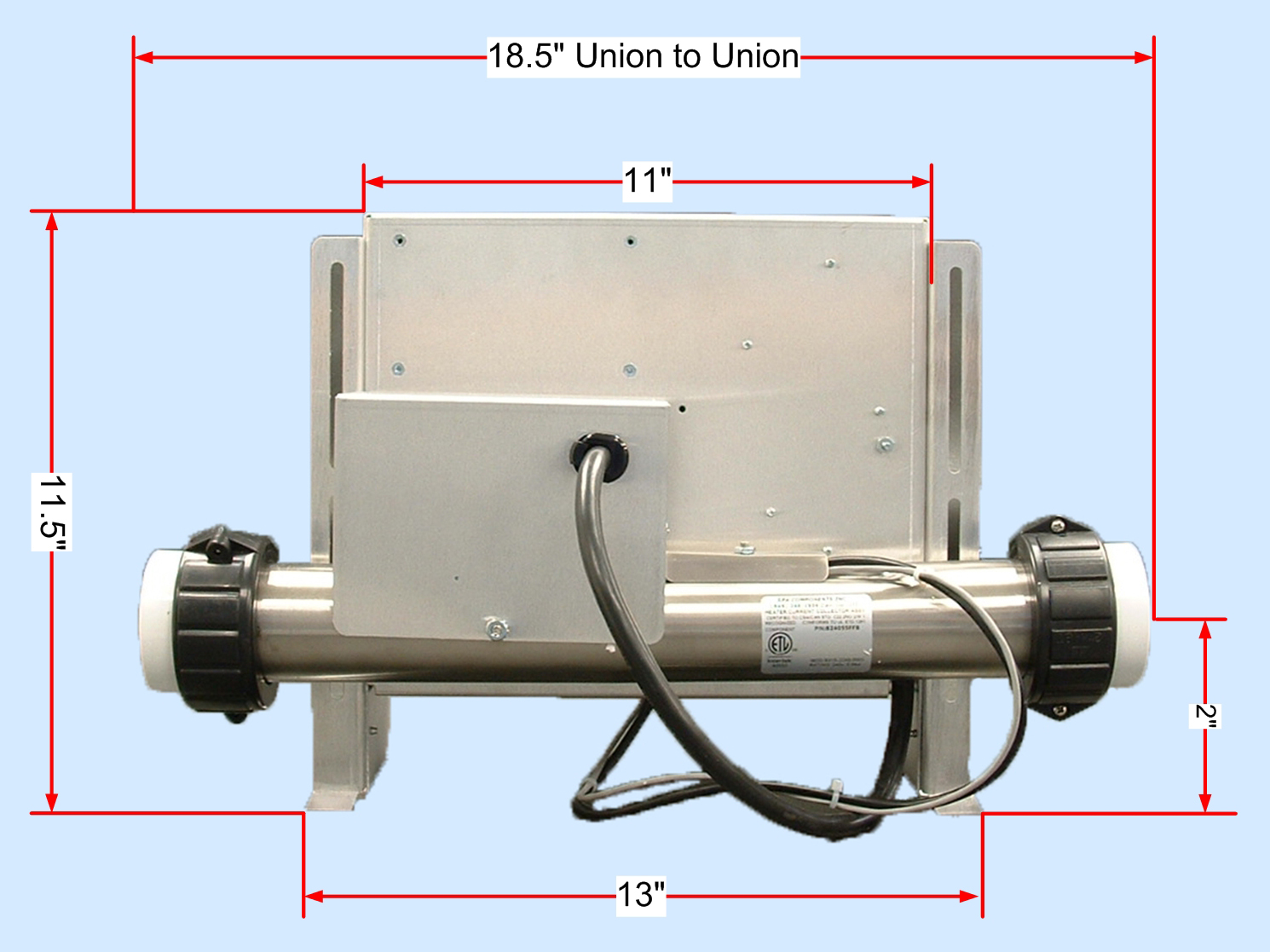

Flexitrol Dimensions
<Click for dimensions Manifold Low>
[Fig. ]
Flexitrol Dimensions
Heater control cables are 3 feet long.
When heater is separate from Flexitrol box,
heater MUST be properly grounded on ground lug.

[Fig. ]

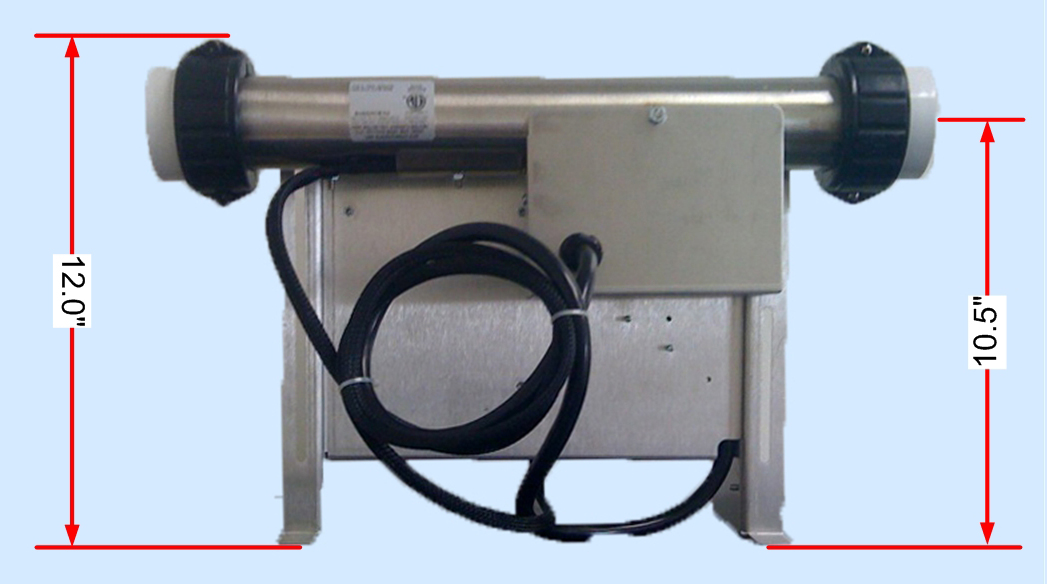

Flexitrol Dimensions
<Click for dimensions Manifold High>
[Fig. ]

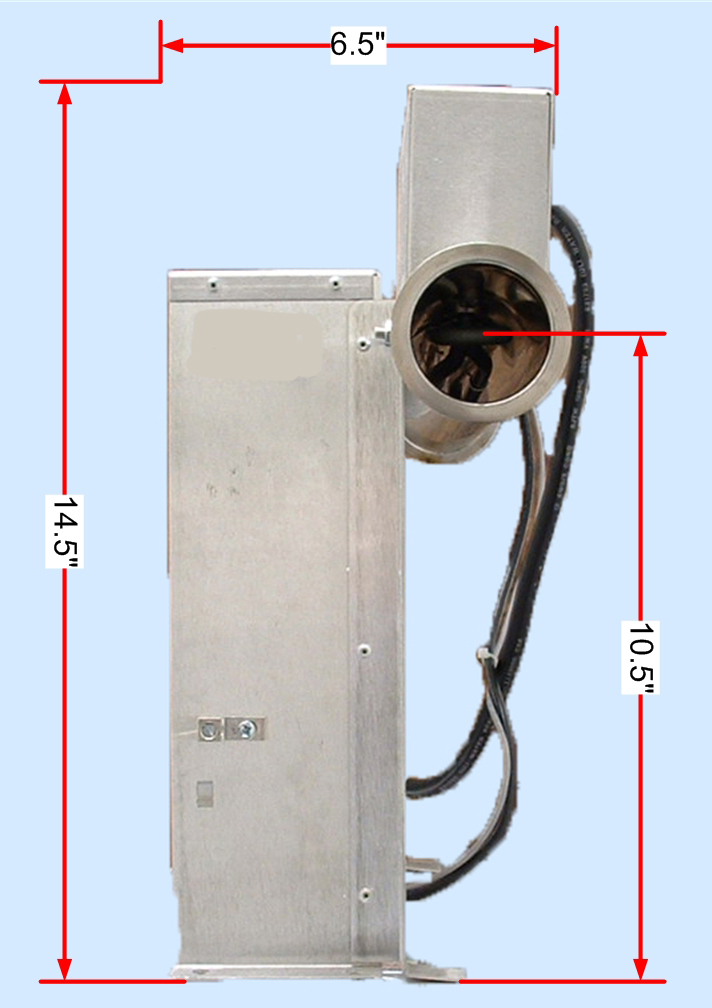

Flexitrol Dimensions
<Click for dimensions Side View>
[Fig. ]
Flexitrol Connections
<Click for connections>
[Fig. ]

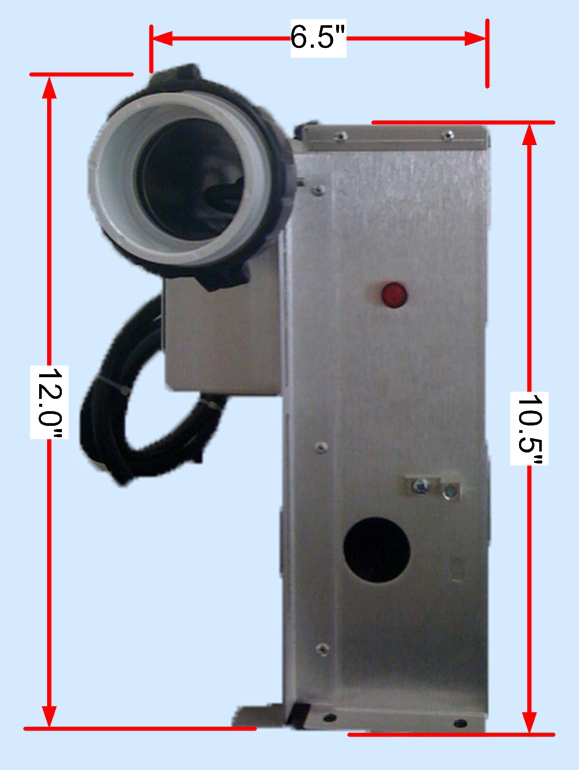

Flexitrol Dimensions
<Click for dimensions Side View>
[Fig. ]
Section B: Topside Spa Controllers - Install on top of spa or on cabinet
Row Our Topside Controllers are made with reliable membrane switch technology used in the Aerospace Industry.
1 HL2000 Digital Spa Side Control
HL2000 & HL2000XL
W=2.500" x L=5.600"

PM7000 Digital Spa Side Control
PM7000 & PM7000XL
W=3.00" x L=6.50"

MN2000 Digital Spa Side Control
MN2000 & MN2000XL
W=2.060" x L=4.510"

2 PM3002 Digital Spa Side Control
PM3002 & PM3002XL
W=3.250" x L=7.250"

PM6000 Digital Spa Side Control
PM6000 & PM6000XL
W=3.500" x L=9.000"

PM5010 Digital Spa Side Control
PM5010 & PM5010XL
W=4.550" x L=9.75"

MN2000-X Auxiliary Digital Spa Side Control
MN2000-1
W=2.060" x L=4.510"

We have made it simple for you to design a spa control online using the Tables below:
1. Scroll down to Table (1). Select the electrical circuitry options for your hot tub using the "Row" and "Option to Choose" columns. Read the "Option Description" for each "Row". Select the necessary option to match your application and properly power your hot tub.
2. Scroll down to Table (2). Read the description to verify the Flexitrol you are ordering. When you are satisfied with the control's options, click on "Add to Order" to save your selection in the shopping cart.
3. Scroll down to Table (3). Add the necessary accessories and electrical connections you may need to properly connect existing accessories to the Flexitrol control box. For each accessory in Table (3), change quantity as needed and click on "Add to Order" (on same "Row" as accessory) to add to shopping cart.
4. Click on "View Order" to see Shopping Cart summary and follow the instructions to complete your order.



Our knowledge is powered by 18 patents and over 32 years of experience designing and producing the best spa support products in the hot tub industry.
Why pay retail??? Buy manufacturer direct and save!!!!
We are the only spa control manufacturer to sell direct to the public at affordable prices. All other hot tub control manufacturers have to sell through the standard sales channel, from spa manufacturer, to dealer, to distributer, to service people, and finally to the consumer at high cost. Only with Acura Spa Systems, Inc., consumers can purchase brand new, reliable, top quality hot tub controls, factory direct with free freight and no middle man.
We can properly manage your hot tub.
Our hot tub controls can power virtually any portable spa! Simply verify dimensions for direct drop-in replacement in your spa. We carry all materials in stock. Since 1987, we have powered over 500,000 hot tubs of different names and brands. We can also power yours. Call us for any technical questions, 951-684-6667 x.223
Knowledge and experience you can trust.
Unlike other spa suppliers whose knowledge is just marketing talk, our knowledge is powered by 16 Patents and 25 years of experience in designing hot tubs and hot tub components.
Energy Efficiency:
Click to see the test performed at California Polytechnic University, San Luis Obispo for compliance to Title 20 as required by the California Energy Commission (C.E.C.).
For safety:
All Acura Spa Systems controls and heaters have been tested and certified for public safety by ETL. Our spa controls and packs are tested and certified for CE and IEC requirements for hot tubs and spas.
Free Freight* We Will Beat Any Competitor's Price!**



The FlexiTrol Hot Tub Digital Control we proudly offer today represents years of research and experience in manufacturing spa controls and hot tub controls for the spa industry. Almost two decades ago, we set out to design and manufacture reliable, inexpensive and easy-to-use spa digital controls and hot tub digital controls. We have achieved those goals and gone far beyond them in our newest model.
Our Smart Touch Hot Tub Digital Controls offers features unmatched by any other spa system: Our hot tub control offers four Independent Filtration Cycles, Freeze Guard, Temperature Calibration, Economy mode, Silent mode, Continuous Run Circulating Pump, Time Clock, Post Use Filtration, Auto Thermostat, Heater Cool Down Cycle, up to two heaters, up to four pumps (optional), and many other features as well as internal troubleshooting.

For the manufacturer: Reliable, low cost, easy to install.
For the dealer: Easy to explain, easy to sell, easy to troubleshoot.
For the serviceman: Easy to repair.
For the consumer: Simple to operate, a pleasure to own!



  ETL Canada Logo
Canada
  CE Logo

  ETL United States
United States


NOTES:
All electrical work must be performed by a licensed electrician according to National Electrical Code and all local codes and regulations.
All plumbing work must meet I.A.P.M.O., UL 1563, and all local codes and regulations and must be performed by a licensed plumbing contractor.
All shipments are F.O.B. Riverside, California.

Direct manufacturer replacement for A.C.C. hot tub controls used on LifeSpas, Phoenix Spas, Sunbelt Spas, Diamente Spas, and Spa Mechanics.

spa heaters, spa heater, hot tub heater, hot tub heaters, hot tub control, hot tub controls, spa control, spa controls, spa controllers, spa controller, spa digital controller, hot tub digital controller, Megatrol powered digital controls, Titanium spa heater with 5 years no fault warranty when installing the AAB.

Hot Tub Control, Hot Tub Controls, Spa Control, Spa Controls, Digital Spa Control, Digital Hot Tub Controls, Replacement Hot Tub Controls, Replacement Spa Controls, LifeSpas, Good Life Spas, Phoenix Spas, Secard Spas, Sun West Spas, Islander Spas, Colorado Custom Spas, California Custom Spas, ACC Controls, Sunbelt Spas, SpaPartsNet, HotTubWorks



*Free Freight only for Fedex SmartPost. Other forms of shipping incur additional shipping costs.

**Beating competitor's price: We will meet or beat any competitor's written quotation for hardware of the same capability, such as: plumbing size, voltage, motor horsepower, motor 1 or 2-speed, heater length, safety test report, etc.

A $6 Handling charge is applied to all orders.

All products sold per our "Terms and Conditions" found in the "Support" section of our menu.

When your order is produced, the pump motor used (A.O. Smith, Regal Beloit, Marathon Electric, etc.) will be whatever is in stock in our factory at the time.
