Our knowledge is powered by 18 patents and over 32 years of experience designing and producing the best spa support products in the hot tub industry.

Replace your old spa or hot tub pump with the latest technology from Acura Spa Systems, Inc. We have over 300,000 spa and hot tub pumps sold and operating for the last 22 years. All of our spa and hot tub pumps are ETL listed and tested per UL Standard 1081. Our long lasting spa and hot tub pumps are the quietest, most innovative, and most energy efficient in the industry. We are the only spa pump manufacturer to sell direct to the public. Since 1987, our hot tub pumps have been powered by Magnetek Motors, A.O. Smith Motors, Emerson Motors, Marathon Electric and Franklin Electric Motors. Our pumps for many years have supplied many hot tub manufacturers such as: ThermoSpas, LifeSpas, Islander Spas, Catalina Spas, Diamante Spas and Life Spring Spas.

ETL United States
United States

ETL Canada Logo
Canada

Supercharger II Spa Pumps
Table () Select the Proper Shaft Seal Between the Electric Motor and Wetend
From Figure D, E, or F (We will build your pump accordingly):
Industry Standard Seal (-A)
Viton
Pump Seal -A
[Fig. ]
Click below to select


Better Than Industry Standard Seal (-P)

Pump Seal -P
[Fig. ]
Click below to select


The Best Corrosion Resistant Seal (-S)
Water Chemistry Noncorrosive
Pump Seal -S
[Fig. ]
Click below to select



To Order Your Supercharger II From Table 2:
. Find your desired pump model number from Table 2 below. . Click the button to match your desired pump seal. . Change the quantity (if needed). . If you need unions or cables for your Supercharger II pump, select them in Table 2 below. . Click 'Add to Order' button next to desired accessory and change quantity (if needed). . Go back to your desired pump; Verify the model number and quantity are correct. . In the same row as your desired pump, click 'Add to Order' button below the quantity. . Click button to check and submit your order. . Due to variations in individual computers, our page may not display properly on your computer. When placing your order, please verify your desired pump shaft seal is identified on the model number in Table 1. All pumps ship with the "-A" (std) pump seal unless you choose the "-P" (better) or "-S" (water chemistry corrosion resistant) seal.

  1. The Supercharger II is designed to optimize spa pump performance while using the least electrical energy.
  2. The Supercharger II pump passed all Public Safety tests per UL Standard 1081.
  3. The Supercharger II pump is powered by A.O.Smith/Magnetek/Emerson/Marathon Electric/Franklin Electric motors and not by inferior quality motors. Even though motor manufacturers may have different physical motor configurations (for example, capacitors and terminals in different locations), all motors are made per our pump performance specifications. Acura Spa pumps are produced and shipped per our model numbers with any of these motor brands.
  4. The Supercharger series has powered hundreds of thousands of spas of different brands throughout the world since its introduction in 1988.

Models: SCH23020, SCH23020-1, SCH23026, SCH23026-1, SCH23032, SCH23032-1, SCH23040, SCH23040-1, SCH23050, SCH23050-1


To select additional Supercharger II Spa Pump parts and components,
scroll to the table below.


Table () Supercharger II Spa Pump Unions
Spa Plumbing

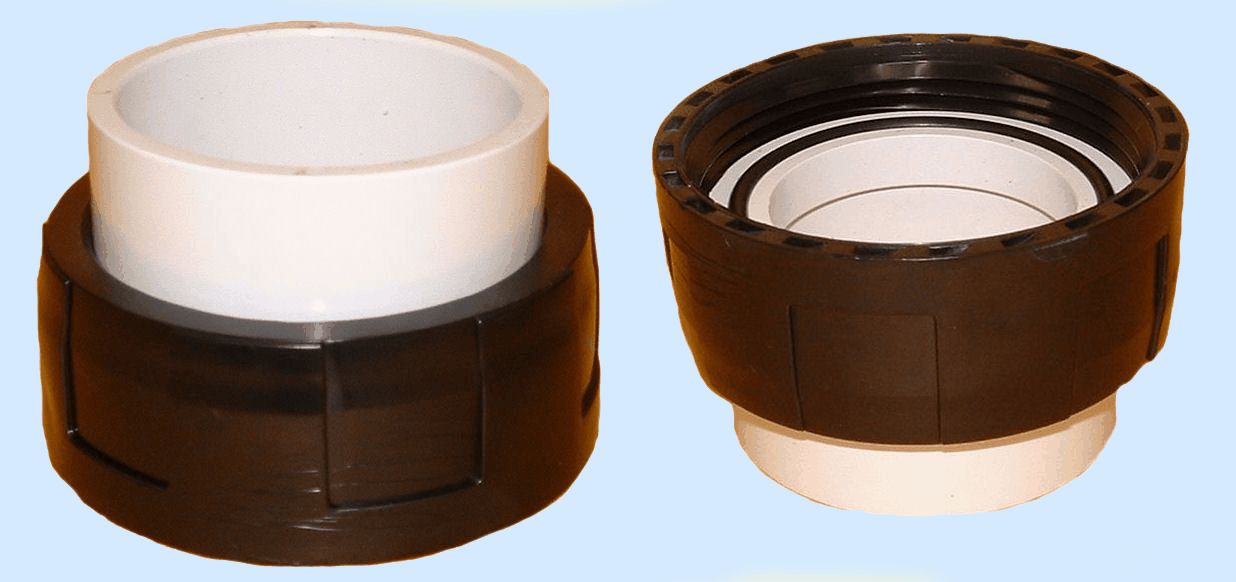

Part #1662: 2.0" Union with Nut and O-Ring
Table () 2.0" Intake, 2.0" Discharge
Spa Plumbing
Click here for help with the spa plumbing
Spa Plumbing
Part #1662



NOTES:
Pump Horsepower:
(cd) Horsepower is the continuous duty output power of the motor or the pump load to the motor.
(spl) Horsepower is used by the hot tub industry (for marketing reasons??).
(bd) Horspower is the motor's maximum load (exceeding this load will burn out the motor).

Model numbers with suffix (-1) indicates the motor is single speed.

No O.E.M. dealers or distributor discounts with limited offer prices.

All pumps are not provided with unions, unions sold separately. Unions are identified by plumbing dimensions (like 1.5" or 2.0"), but these numbers ARE NOT the physical outer pipe dimensions. These numbers indicate the waterflow volume going into and out of the pump. Please use part numbers as identified for your application.

All electrical work must be performed by a licensed electrician.
All plumbing work must meet I.A.P.M.O., UL 1563, and all local codes and regulations and must be performed by a licensed plumbing contractor.



Exploded View & Part List

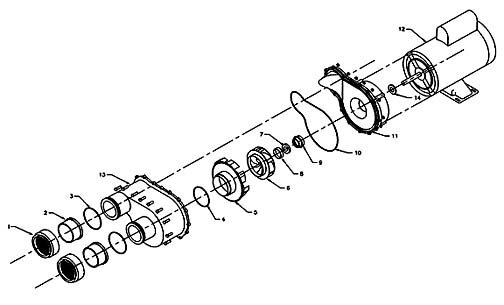

Supercharger II Exploded View
Both Intake and Discharge have
the same threads and
outer thread dimensions.





*Free Freight only for Fedex SmartPost. Other forms of shipping incur additional shipping costs.

**Beating competitor's price: We will meet or beat any competitor's written quotation for hardware of the same capability, such as: plumbing size, voltage, motor horsepower, motor 1 or 2-speed, heater length, safety test report, etc.

A $6 Handling charge is applied to all orders.

All products sold per our "Terms and Conditions" found in the "Support" section of our menu.

When your order is produced, the pump motor used (A.O. Smith, Regal Beloit, Marathon Electric, etc.) will be whatever is in stock in our factory at the time.
