Our knowledge is powered by 18 patents and over 32 years of experience designing and producing the best spa support products in the hot tub industry.
| Click on the pump model number below to see dimensions... | ||
 Model Numbers: MS23032 [Fig. A] |
 Model Numbers: MS23050 [Fig. B] |
|
| Step () Measure your existing pump outer thread diameter for inlet and outlet as shown in Figures A and B. Select the proper O.D. (Outer Diameter) in Figure A or Figure B by clicking the proper button below. | |
|---|---|
 Selected Selected [Fig. ] |
 Click below if you need 3.5" Intake x 3.0" Discharge You need Part #1690 from Table 9. [Fig. ] |
| Step () Select the Pump Discharge Orientation that Matches Your Spa Plumbing from Figures C, D or E. (Look at your pump from the spa plumbing end, not from the electrical motor end): | ||
|---|---|---|
|
Discharge Right (Suffix -3)  [Fig. ] Click below to select |
Discharge Up (No Suffix)  [Fig. ] Click below to select |
Discharge Left (Suffix -4)  [Fig. ] Click below to select |
| Step () We will automatically install the industry standard seal selected on Figure F. For corrosive spa water (with chlorine, bromine, salt, etc.) we recommend the corrosion resistant seal from Figure H. Protect your motor from your spa water!: | ||
|---|---|---|
|
Industry Standard Seal (-A) Viton  [Fig. ] Click below to select |
Better Than Industry Standard Seal (-P) [Fig. ] Click below to select |
The Best Corrosion Resistant Seal (-S) Water Chemistry Noncorrosive  [Fig. ] Click below to select |
To Order Your Magnaflow Pump From Tables 1, 2 or 3:
.
Find your desired pump model number from Table 1, Table 2 or Table 3 below.
.
Click the button to match your existing pump discharge position.
.
Click the button to match your desired pump seal.
.
Change the quantity (if needed).
.
If you need unions or cables for your Magnaflow pump, select them in Table 7 below.
.
Click 'Add to Order' button next to desired accessory and change quantity (if needed).
.
Go back to your desired pump; Verify the model number, discharge position and quantity are correct.
.
In the same row as your desired pump, click 'Add to Order' button below the quantity.
.
Click
button to check and submit your order.
.
Due to variations in individual computers, our page may not display properly on your computer.
When placing your order, please verify your desired pump discharge position (see Step 2 above)
and desired pump shaft seal are identified on the model number.
All pumps ship with the "-A" (std) pump seal unless you choose the "-P" (better)
or "-S" (water chemistry corrosion resistant) seal. Pumps with prefix 'MM' are 48-Frame and pumps
with prefix 'MS' are 56-Frame, however, both 'MM' and 'MS' pumps of equivalent model number
have the same hydraulic performance.
Pump weight does not include packaging material or shipping container.
| Click on the pump model number below to see dimensions... | ||

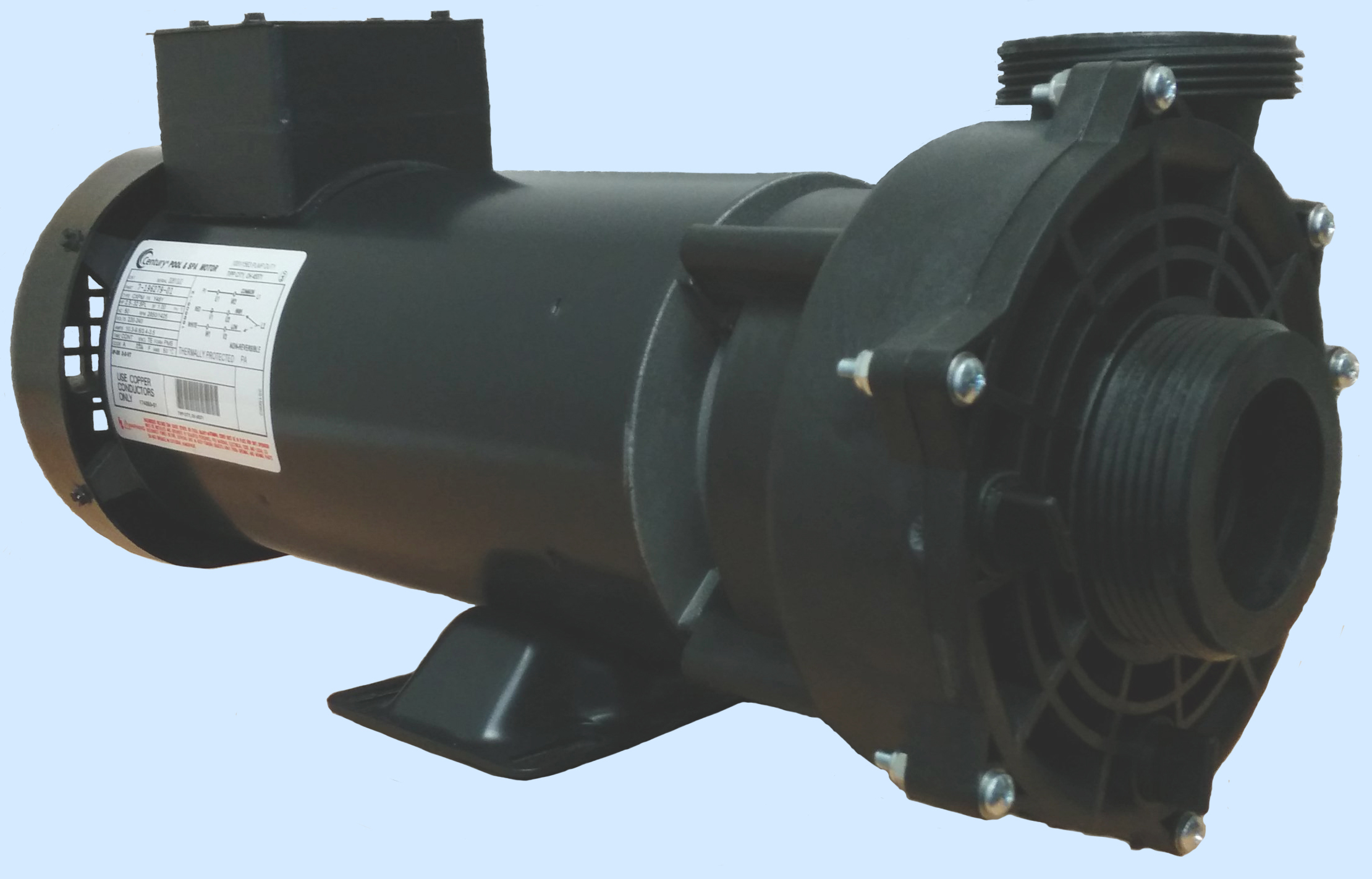

 Model Numbers: MS23050-50HZ [Fig. ] |
||
Pump weight does not include packaging material or shipping container.
 MS23032 [Fig. F] |
 MS23050 [Fig. G] |
| Click on the pump model number above to see dimensions... | |
When shopping for a replacement spa pump, always ask for the original Magnaflow.
- The Magnaflow is designed with a unique 8-vane impeller to dampen hydraulic noise.
- The Magnaflow is designed to optimize spa pump performance while using the least electrical energy.
- The Magnaflow pump passed all Public Safety tests per UL Standard 1081.
- The Magnaflow pump is powered by A.O.Smith, Magnetek, Emerson, Marathon Electric, Franklin Electric, SNTech, Regal Beloit or Century motors and not by inferior quality motors.
- The Magnaflow series has powered hundreds of thousands of spas of different brands throughout the world since its introduction in 1994.
- When comparing prices with other brands, also compare the pumps net weight. Larger horsepower need more copper windings increasing the net weight of the pump.
To select additional Magnaflow-56 Spa Pump parts and components,
scroll to the table below.
| Table () Magnaflow-56 Spa Pump Unions: | |
|---|---|
Part #1662: 2.0" Union with Nut and O-Ring |
Part #1652: 2.0" Discharge Union with Nut (NO O-Ring) |
| Table () 2.0" Intake, 2.0" Discharge | |
|---|---|
Click here for help with the spa plumbing |
Part #1652 & Part #1662 |
NOTES:
Pump Horsepower:
(cd) Horsepower is the continuous duty output power of the motor or the pump load to the motor.
(spl) Horsepower is used by the hot tub industry (for marketing reasons??).
(bd) Horspower is the motor's maximum load (exceeding this load will burn out the motor).
Model numbers with suffix (-1) indicates the motor is single speed.
Model numbers with no suffix indicate discharge straight up.
Model numbers with suffix (-3) indicates the discharge is to the right.
Model numbers with suffix (-4) indicates the discharge is to the left.
No O.E.M. dealers or distributor discounts with limited offer prices.
All pumps are not provided with unions, unions sold separately. Unions are identified by plumbing dimensions (like 1.5" or 2.0"),
but these numbers ARE NOT the physical outer pipe dimensions.
These numbers indicate the waterflow volume going into and out of the pump.
Please use part numbers as identified for your application.
All electrical work must be performed by a licensed electrician.
All plumbing work must meet I.A.P.M.O., UL 1563, and all local codes and regulations
and must be performed by a licensed plumbing contractor.
Both Intake and Discharge have the same threads and outer thread dimensions. |
Magnaflow 56-Frame Volute Part #1112S (rearview) |
|
|
Replace your old spa or hot tub pump with the latest technology from Acura Spa Systems, Inc. We have over 1.3 million spa and hot tub pumps sold and operating for the last 22 years. All of our spa and hot tub pumps are ETL listed and tested per UL Standard 1081. Our long lasting spa and hot tub pumps are the quietest, most innovative, and most energy efficient in the industry. We are the only spa pump manufacturer to sell direct to the public. Since 1987, our hot tub pumps have been powered by Magnetek Motors, A.O. Smith Motors, Emerson Motors and Franklin Electric Motors. Our pumps for many years have supplied many hot tub manufacturers such as: ThermoSpas, LifeSpas, Islander Spas, Catalina Spas, Diamante Spas and Life Spring Spas.
*Free Freight only for Fedex SmartPost. Other forms of shipping incur additional shipping costs.
**Beating competitor's price: We will meet or beat any competitor's written quotation for hardware of the same capability, such as: plumbing size, voltage, motor horsepower, motor 1 or 2-speed, heater length, safety test report, etc.
A $9.95 Handling charge is applied to all orders.
All products sold per our "Terms and Conditions" found in the "Support" section of our menu.
When your order is produced, the pump motor used (A.O. Smith, Regal Beloit, Marathon Electric, etc.)
will be whatever is in stock in our factory at the time.
