Section A: Compact Hot-Line - Installs inside spa cabinet

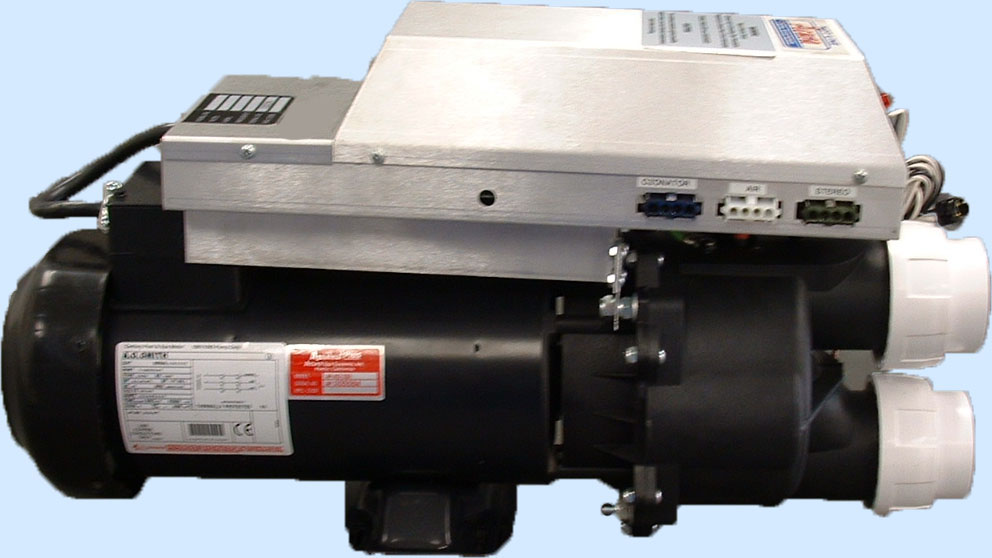

Compact Hot-Line Spa Pack
(Click to see Hotline CHLAP dimension details)

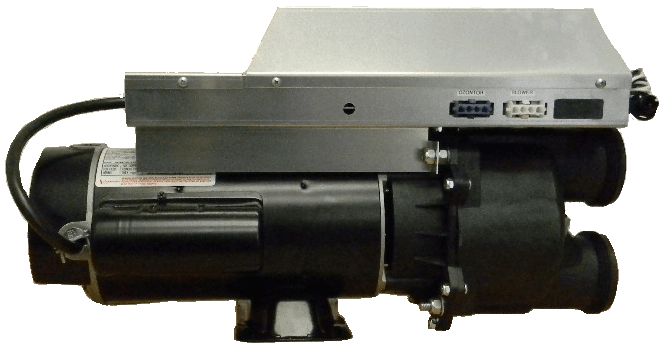

Left Side View
[Fig. ]
Compact Hot-Line Spa Pack
(Click to see Hotline CHLAP connection details)

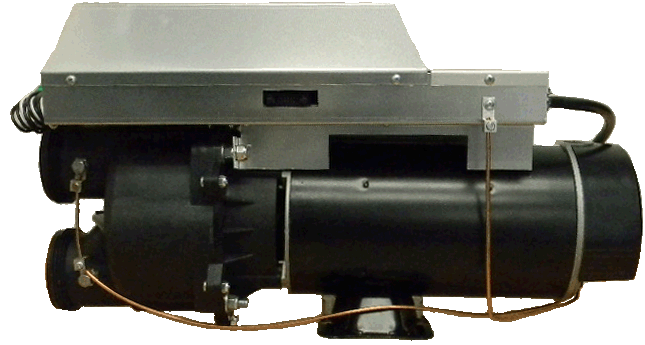

Right Side View
[Fig. ]
Compact Hot-Line Spa Pack
(Click to see enlarge and see Hotline CHLAP connection details)

[Fig. ]
Section B: Topside Spa Controllers - Install on top of spa or on cabinet
Row Our Topside Controllers are made with reliable membrane switch technology used in the Aerospace Industry.
1 HL2000 Digital Spa Side Control
HL2000 & HL2000XL
W=2.500" x L=5.600"

PM7000 Digital Spa Side Control
PM7000 & PM7000XL
W=3.00" x L=6.50"

MN2000 Digital Spa Side Control
MN2000 & MN2000XL
W=2.060" x L=4.510"

2 PM3002 Digital Spa Side Control
PM3002 & PM3002XL
W=3.250" x L=7.250"

PM6000 Digital Spa Side Control
PM6000 & PM6000XL
W=3.500" x L=9.000"

PM5010 Digital Spa Side Control
PM5010 & PM5010XL
W=4.550" x L=9.75"

MN2000-X Auxiliary Digital Spa Side Control
MN2000-1
W=2.060" x L=4.510"

Not All Heaters Are Created Equal!

The CHLAP 5.5kw heater is 73" long. An industry standard heater is only 39" long.

Prices include Free Freight*

The CHLAP Series operates 1 pump & 1 blower or 2 pumps (not to exceed 18 Amps), see table below... Place Your Order By Selecting Options From The Table Below:
1. Choose your options from the table below. 2. Verify the model description.
3. Change the quantity (if needed). 4. Click 'Add to Order' button below the quantity.
5. Click 'View Order' button to check and submit your order.

CHLAP 50Hz Series for Europe and all other 50Hz Countries
Hotline CHL Digital Spa Pack
50Hz Model
Dimensions: L=21¾" (without Unions) x H=12" x W=6½"
Dimensions: L=23¼" (with Unions) x H=12" x W=6½"

The CHLAP Digital Spa Pack is designed to power Portable Spas at all levels with 2.0" plumbing, one pump and a blower. This unique, compact and inexpensive design is the perfect solution to retrofit and upgrade your old spa equipment with the latest digital technology available for portable spas.

The CHLAP Digital Spa Pack comes with one pump, a 5,500 watt heater and a digital control all in one unit and it takes less then 30 minutes to set it in the equipment bay of your portable spa.

You only need a 2.0" pipe from your spa to connect to the suction of the pump and another 2.0" pipe to connect to the discharge of the pump. Install your spa side control, connect the electrical, fill the spa and spa plumbing with water and enjoy your spa.

The Mega e-Saver digital control is also equipped to drive a pump, blower, water purification system, stereo, fiber optic lighting and other accessories. Please check on the table provided for proper model suffix when ordering.

The Mega e-Saver digital control in its economy mode will only turn "On" the spa heater when it is necessary, as a result you minimize your electrical consumption and keep your spa at the desired temperature setting.

Our digital control will also provide you with four independent filter cycles in a 24 hour period, post use filtration so you can manually activate you filter cycle after each use of your spa, temperature calibration, AM/PM time of day, 100% memory when loosing power just reset your time of day except, trouble shooting guide, lock in desired temperature. In addition, our Mega e-Saver Digital Control offers features unmatched by any other system: Freeze Guard, Economy mode, Silent mode, Auto thermostat, Heater Cool-Down Cycle and many other features as well as an internal troubleshooting. The CHLAP Digital is powered by an AquaHeat Plus pump.

The CHLAP Digital is also powered by a 66" long coiled heating element with a 5,500 watt output at 240 volts. This unique low watt density electric heater is installed in the pump housing and is 100% efficient when transferring electrical energy to heat energy since it is 100% submerged in the water path. Our unique coiled heater design minimizes the friction loss of water flowing through the pump and optimizes the pumps performance. Unlike other spa heater housings where the heater inside the manifold restricts the water flow, forcing consumers to pay for higher horse-power pumps to maintain adequate hydraulic system pressure.

Consumers should be asking for the watt density of the electric heater and not just the wattage, a lower watt density means longer heater life time. Most spa manufacturers provide a 40" long heating element that has a watt density of 139, our heater has a watt density of 84 providing efficient heating with less strain on the heater.

2.0" Intake, 2.0" Discharge
Standard 2.0" PVC Pipe
Spa Plumbing
Click here for help with the spa plumbing
Spa Plumbing
Part #1662 & Part #1652



Exploded View & Part List

Hotline CHL Exploded View




NOTES:
All electrical work must be performed by a licensed electrician according to National Electrical Code and all local codes and regulations.
All plumbing work must meet I.A.P.M.O., UL 1563, and all local codes and regulations and must be performed by a licensed plumbing contractor.
All pump suction must be connected to two drains (VGB certified) in the spa to meet all safety requirements.
