Magnaflow 48-Frame

Prices include Free Shipping*

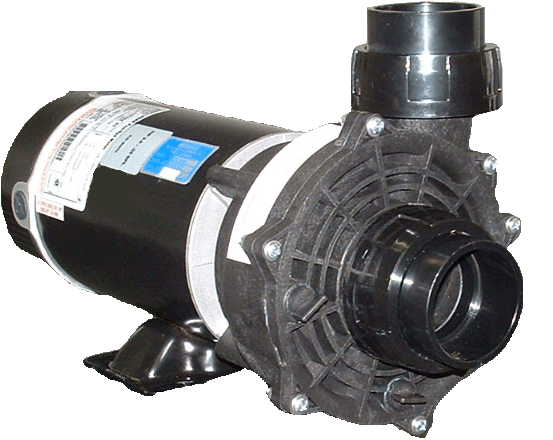

[Fig. A]

Select your Magnaflow Pump

Pump Discharge Positions

Discharge Right (-3) [Fig. B]

Discharge Up ( ) [Fig. C]

Discharge Left (-4) [Fig. D]



The Magnaflow was first introduced to the portable spa market in 1994 as the first full-rated 3.0hp, 48-frame motor. The Magnaflow's unique eight-vein impeller allows the Magnaflow to achieve unsurpassed performance with very little noise. For many years the Magnaflow has powered spas made by: Action Spas, Carribean Spas, Catalina Spas, Curtis Spas, Dakota Spas, Diamante Spas, Dolphin Spas, Goodlife Spas, Grecian Spas, Hawkeye Spas, Hydromex, Islander Spas, Jetpool (Brazil), Leisure Spas, Life Spas, Lifespring Spas, Mountain Spring Spas, Orozco International Spas, Pacific Fiberglass, Pacific Pool and Spas (Canada), Platinum Spas, Seacard Pool and Spas, Sunbelt Spas, Sunquest Spas, Thermospas, US Tooling Spas, Vortex Whirlpool Systems, Inc., and many others.



2.0" Intake, 2.0" Discharge

Click here for help with the spa plumbing

Part #1652 & Part #1662



Prices include Free Shipping*





Magnaflow Unions:

Part #1662: 2.0" Union with Nut and O-Ring

Part #1652: 2.0" Discharge Union with Nut (NO O-Ring)

NOTES:
Horsepower: spl means "special peak horsepower", cd means "continuous duty horsepower".
Model numbers with suffix (-1) indicates the motor is single speed.

All model numbers shown on this table indicate discharge straight up [Fig. C].
Model numbers with suffix (-3) indicates the discharge is to the right [Fig. B].
Model numbers with suffix (-4) indicates the discharge is to the left [Fig. D].

No O.E.M. dealers or distributor discounts with limited offer prices.

All pumps are not provided with unions, unions sold separately. Unions are identified by plumbing dimensions (like 1.5" or 2.0"), but these numbers ARE NOT the physical outer pipe dimensions. These numbers indicate the waterflow volume going into and out of the pump. Please use part numbers as identified for your application.

All electrical work must be performed by a licensed electrician.
All plumbing work must meet I.A.P.M.O., UL 1563, and all local codes and regulations and must be performed by a licensed plumbing contractor.

Exploded Views & Parts List



Performance Data



*Free Shipping only for U.P.S. Ground in the USA. Other forms of shipping incur additional shipping costs.
